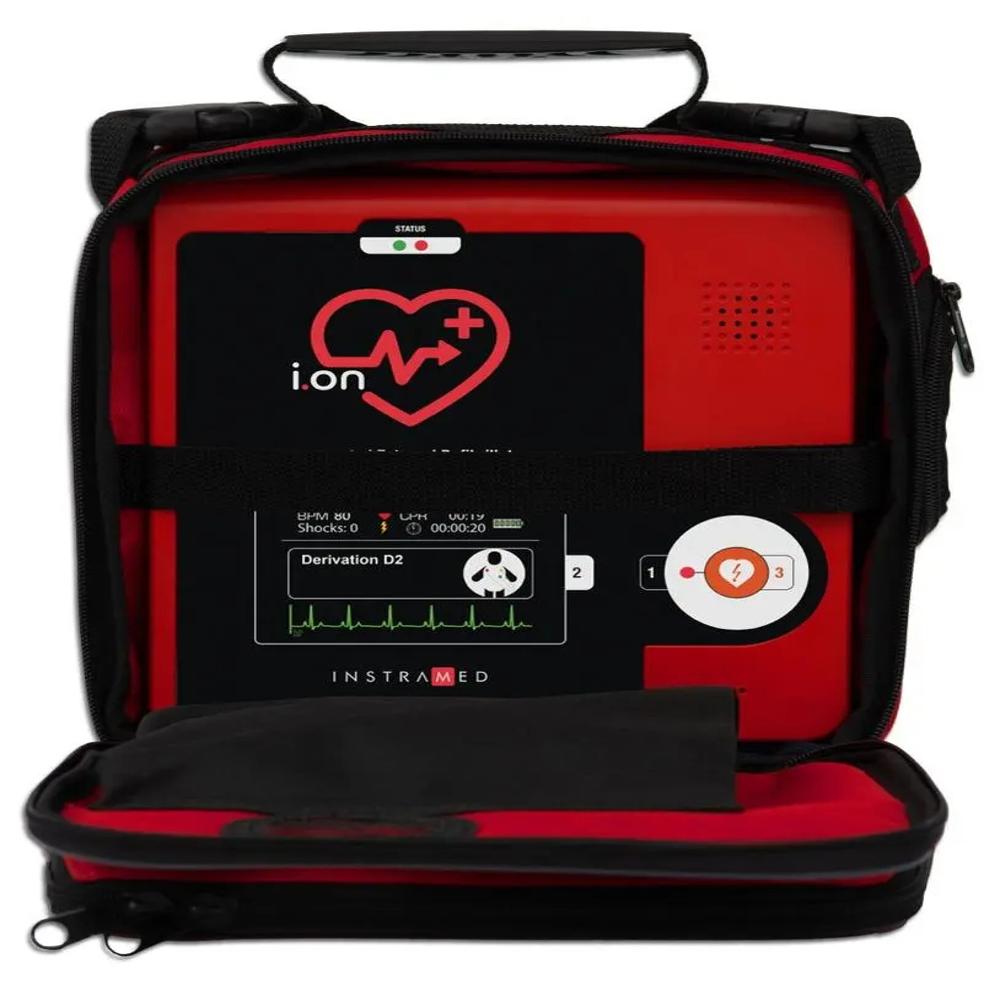

Instramed i.on LCD AED

Name: Instramed i.on LCD AED
Brand: MEDIKART HEALTHCARE SYSTEMS PVT. LTD.
Price: 142000.0 INR
Availability: InStock

Price 142000.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Instramed i.on LCD AED Specification

Frequency
Not Applicable (DC powered)

Weight
1.2 Kilograms (kg)

Accuracy
ECG Rhythm Detection > 95%

Humidity Range
Relative Humidity 0% to 95% (non-condensing)

Automation Grade
Fully Automatic

Properties
Compact, Portable, LCD Display, Visual and Audio Prompts

Product Type
AED

Temperature Range
Operating: 0C to 50C, Storage: -20C to 60C

Function
Automated Shock Delivery, Rhythm Analysis

Color Code
Yellow & Grey

Material
High-Durability ABS Plastic

Power
DC Battery Powered (Lithium Non-Rechargeable)

Application
Cardiac Emergency Response

Storage Capacity
Up to 90 minutes of ECG and event data

Treatment Type
Sudden Cardiac Arrest

Phase
Single Phase

Dimension (L*W*H)
6.9 22.5 22.5 Centimeter (cm)

Use
Defibrillation in Cardiac Arrest

Shape
Rectangular Handheld

Height
70 mm

Suitable For
Hospitals, Ambulances, First Responders, Public Access

Display Type
Color Graphic LCD

Display
Liquid Crystal Display (LCD)

Voltage
15V DC nominal

Power Source
Internal Lithium Battery

Ingress Protection
IP55 (splash and dust resistant)

Audio Prompts
Multilingual, step-by-step guidance

Shock Advisory System
Integrated algorithm with pre-shock ECG analysis

Alarm Indications
Audio-visual alarms for errors and readiness

ECG Input
Pads with built-in safety circuitry

Energy Output
Biphasic truncated exponential waveform, Initial: 150 Joules, Maximum: 200 Joules

Self-Test System
Daily, Weekly, Monthly automatic self-tests

Battery Capacity
Delivers 200 shocks or 8 hours monitoring

Language Support
Multiple selectable languages

Compliance
IEC 60601-1, ISO 13485, CE Certified

Pad Placement Guide
On-screen animated instructions and labeling

Electrode Type
Disposable, Pre-Gelled, Adult & Pediatric compatible

Event Documentation
Internal memory and USB download

Visual Prompts
Animated graphical display with instructions

Battery Standby Life
5 years (typical)

Instramed i.on LCD AED Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Instramed i.on LCD AED

The Instramed i.on LCD AED is an advanced Automated External Defibrillator designed for rapid emergency cardiac response in hospitals, clinics, ambulances, airports, offices, and public spaces. Equipped with a 4.3-inch color LCD display, the device provides clear visual and voice guidance to assist both trained professionals and first responders during sudden cardiac arrest situations.

This lightweight and portable AED delivers fast biphasic shocks up to 360 Joules in less than 6 seconds for quick intervention. The device features one-button operation, IP56 protection, ECG monitoring capability, intelligent rhythm analysis, and optional automatic shock delivery. Its user-friendly design and reliable performance make it ideal for emergency medical care and public access defibrillation programs.

Comprehensive Guidance and Safety

The Instramed i.on LCD AED simplifies emergency defibrillation with clear audio and visual instructions. Multilingual prompts, animated graphical displays, and precise pad placement guides support users of any background. Built-in safety features, such as pre-shock ECG analysis, automatic self-tests, and integrated error alarms, ensure dependable operation during critical events.

Reliable Performance and Durability

Engineered with high-durability ABS plastic and offering IP55-rated splash and dust resistance, this AED withstands intense environments and frequent handling. The lithium battery delivers up to 200 shocks or 8 hours of monitoring, sustaining peak readiness for five years in standby mode. Extensive internal memory and USB download enable comprehensive event and ECG documentation.

FAQ's of Instramed i.on LCD AED:

Q: How do I use the Instramed i.on LCD AED during a cardiac emergency?

A: Simply turn on the device and follow the multilingual audio and animated visual prompts. Attach the pre-gelled disposable pads to the patient as indicated on the on-screen instructions. The AED will analyze the ECG and advise if a shock is needed, automatically delivering energy when required.

Q: What safety features does the Instramed i.on LCD AED provide?

A: The AED features built-in safety circuitry in the pads, automatic daily, weekly, and monthly self-tests, and a shock advisory algorithm that analyzes ECG before shock delivery. It also has audio-visual alarms to indicate errors or device readiness status, all complying with IEC 60601-1 and CE standards.

Q: When should the AED pads be replaced?

A: Pads should be replaced after each use or if they reach their expiration date as indicated by the manufacturer. Ensure you always have a set of pre-gelled, compatible pads on hand for both adult and pediatric patients.

Q: Where can the Instramed i.on LCD AED be deployed?

A: This AED's compact and portable design makes it suitable for hospitals, ambulances, first responders, and public venues. Its robust IP55 protection and broad operating temperature range ensure reliability across diverse environments.

Q: What event documentation capabilities does the AED offer?

A: The device internally stores up to 90 minutes of ECG and event data. Data can be downloaded via USB for post-event review, quality assurance, or record-keeping.

Q: How does the device ensure ease of use for non-medical personnel?

A: Multilingual audio prompts, on-screen animated pad placement guides, and clear graphical instructions make operation straightforward, even for untrained bystanders, enhancing prompt and effective intervention during cardiac events.

Q: What are the primary benefits of choosing the Instramed i.on LCD AED?

A: Benefits include high reliability, user-friendly guidance, compatibility with adults and children, long battery standby life, and robust event documentation and safety features-all within a lightweight, durable design.
