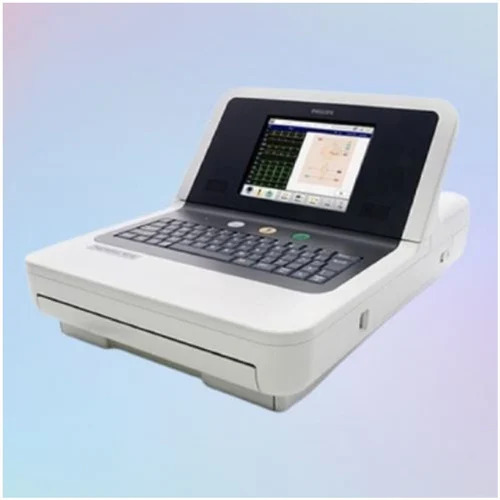

Philips PageWriter TC35 ECG Machine

Name: Philips PageWriter TC35 ECG Machine
Brand: MEDIKART HEALTHCARE SYSTEMS PVT. LTD.
Price: 192499.0 INR
Availability: InStock

Price 192499.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Unit

Philips PageWriter TC35 ECG Machine Specification

Type
Electrocardiograph (ECG) Machine

Material
ABS plastic housing

Condition
Refurbished / Used

Technology
Digital, interpretive ECG technology

Portable
Yes, cart-based portable with carrying handle

Channels
3/6/12 channels selectable

Resolution
300 dpi

Sample Rate
1000 samples/second/channel

Download Interface
LAN, USB, Serial Port

Internal Memory
Up to 150 ECG records

Recording Time
Continuous and single acquisition

Recording Mode
Auto, manual, rhythm

Record Format
PDF, SCP, XML digital export

Gain
2.5, 5, 10, 20 mm/mV adjustable

Lead Acquisition
Simultaneous 12-lead acquisition

Frequency
0.05 Hz - 150 Hz

Operating Mode
Manual and automatic

Paper Type
Thermal paper

Speed
5, 10, 25, 50 mm/s

Inter-Channel Interference
< 1%

Sensitivity
Within 5%

Filters
Muscle, baseline, AC interference

Screen
LCD color touch screen (6.5 inch)

Real-Time Operation
Yes, real-time waveform display

Noise Level
26 db

Accuracy
High diagnostic accuracy for 12-lead ECG analysis

Power Source
Rechargeable Li-ion battery and AC power

Power Consumption
Less than 60 VA

Voltage
100-240V AC, 50/60Hz

Battery Life
Up to 30 ECG printouts or 3 hours continuous use

Dimension (L*W*H)
31.6 22.1 11.1 Centimeter (cm)

Color
White/Grey

Weight
3.6 Kilograms (kg)

Use
Hospital, Clinic, Cardiology Department

Language Support
Multi-language menu interface

Connectivity
Direct network and wireless optional

QWERTY Keyboard
Alphanumeric, sealed membrane type for data entry

Date and Time Display
Real-time clock support

ECG Preview
Preview of printout before printing

Upgradeability
Software upgrade via USB

Interpretation
Advanced clinical algorithms with diagnostic statements

Lead-Off Detection
Automatic lead-off indicator

Printer
Integrated high-resolution thermal printer

Built-In Battery
Rechargeable with automatic power-saving mode

Report Storage
Up to 200 reports onboard

Safety Compliance
IEC 60601-1 and CE certified

Patient ID Entry
Manual entry or barcode scanning (optional)

Philips PageWriter TC35 ECG Machine Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Philips PageWriter TC35 ECG Machine

The Philips TC35 ECG is a portable, high-performance electrocardiogram device designed to facilitate efficient cardiac monitoring in various clinical settings. Featuring a 12-lead configuration, it provides comprehensive heart assessments with high-quality readings. Its lightweight and compact design make it easy to transport, while the intuitive touchscreen interface ensures user-friendly operation. The TC35 also supports electronic data management, allowing for seamless storage and sharing of ECG data. With built-in automated interpretation capabilities, it assists clinicians in making quick, informed decisions, ultimately enhancing patient care and workflow efficiency.

Advanced Clinical Performance and Workflow

The Philips PageWriter TC35 leverages state-of-the-art interpretive ECG technology, delivering high diagnostic accuracy for 12-lead ECGs. Its advanced clinical algorithms provide comprehensive diagnostic statements, supporting clinicians in making informed decisions. The easy-to-use touch screen, real-time waveform preview, and seamless switch between manual and automatic modes streamline workflow and enhance patient care.

Seamless Data Management and Connectivity

Effortlessly store and share up to 200 reports with internal memory and a variety of connectivity options, including LAN, USB, and optional wireless access. Automatic patient ID entry or optional barcode scanning ensures precise record-keeping. Export ECG records digitally in PDF, SCP, or XML formats for integration with hospital EMR systems and improved coordination among care teams.

Portability and User-Friendly Design

Designed for mobility, the TC35 features a lightweight build (3.6 kg), a sturdy ABS plastic body, and a convenient carrying handle. Its cart-based form makes it suitable for bedside use and across multiple departments. The multi-language interface and backlit color LCD touch screen make operation intuitive, promoting ease of use across diverse healthcare environments.

FAQ's of Philips PageWriter TC35 ECG Machine:

Q: How does the Philips PageWriter TC35 ensure accurate ECG readings during patient monitoring?

A: The PageWriter TC35 utilizes simultaneous 12-lead acquisition and advanced clinical algorithms to provide highly accurate ECG analysis. Automatic lead-off detection and interference filters (muscle, baseline, AC) further enhance recording quality, minimizing noise and artifacts for reliable diagnostic interpretation.

Q: What connectivity options are available for exporting or sharing ECG reports?

A: Reports from the TC35 can be exported via LAN, USB, or serial ports. Wireless connectivity is also available as an option. Reports can be saved internally (up to 200), and are exportable in digital formats like PDF, SCP, and XML for easy sharing and integration with electronic medical records.

Q: When should the built-in battery be recharged, and how long does it last?

A: The rechargeable lithium-ion battery supports up to 30 ECG printouts or approximately 3 hours of continuous operation. It is advisable to recharge the device after use or when battery level indicators prompt, ensuring continuous availability for clinical needs.

Q: Where can the TC35 ECG machine be used in a healthcare setting?

A: With its cart-based portable design and lightweight body, the PageWriter TC35 is suitable for use in hospitals, clinics, and cardiology departments. Its durable housing and integrated handle also enable easy transport between wards or patient rooms.

Q: What is the process for entering patient information into the device?

A: Patient IDs can be entered manually through the alphanumeric QWERTY keyboard or automatically using an optional barcode scanner, facilitating quick and accurate patient data entry while reducing errors and streamlining documentation.

Q: How does the real-time preview function benefit users before printing ECG reports?

A: The real-time waveform preview allows clinicians to verify ECG recordings before committing to a printout. This helps in identifying artifact or lead misplacement early, ensuring the highest report quality and reducing unnecessary paper usage.

Q: What are the key usage benefits of the Philips PageWriter TC35 for medical staff?

A: The TC35 offers high diagnostic confidence, streamlined data management, and portability, enhancing workflow efficiency. Its user-friendly touch screen, multi-language menu, and range of connectivity options enable flexible, accurate, and rapid ECG acquisition within various healthcare environments.
