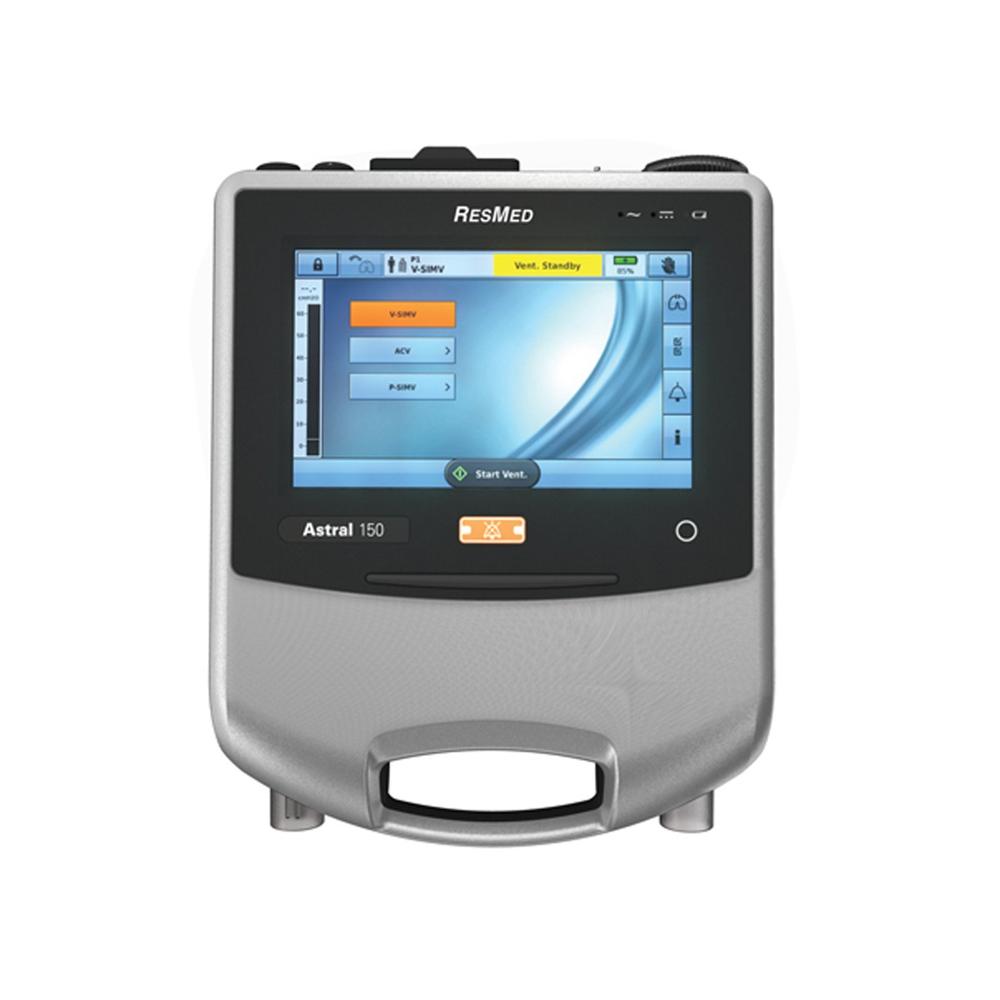

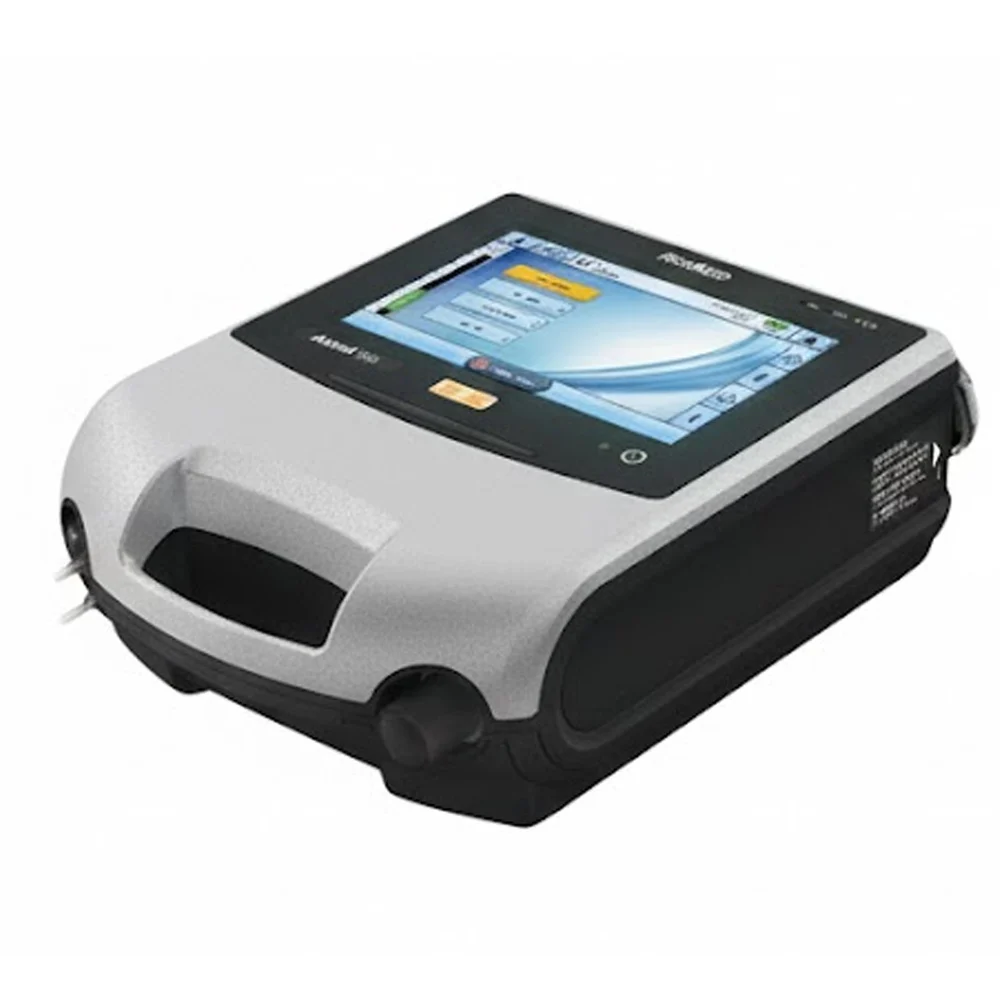

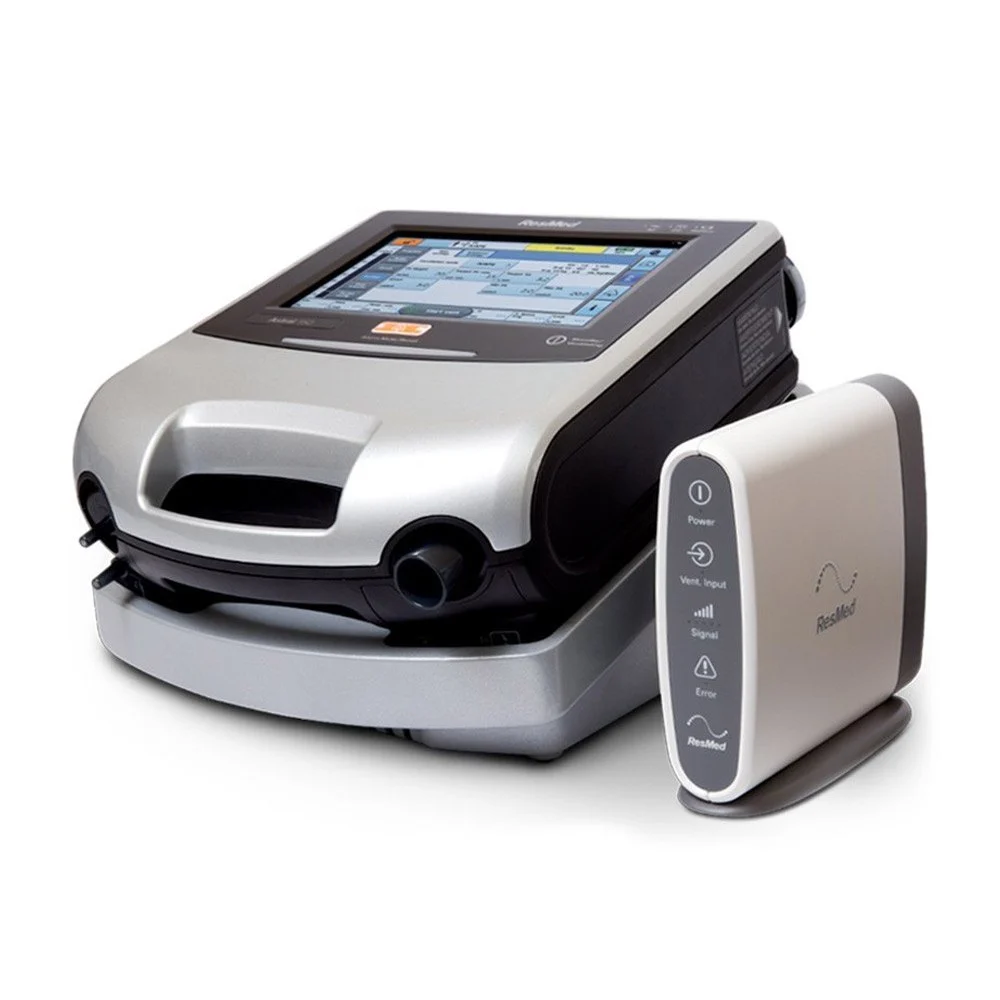

Resmed Astral 150 Invasive ventilator

Get a Price/Quote

MOQ : 1 Unit

Resmed Astral 150 Invasive ventilator Specification

Shape
Rectangular

Filtration Property
Washable & replaceable filters

Features
Touchscreen display, customizable modes, real-time monitoring, alarms

Application
Hospital, ambulance, and home ventilation

Energy Efficiency Rating
High efficiency

Frequency
50/60 Hz

Coverage Area
N/A (device supports single patient)

Motor Speed
Not applicable (turbine-driven)

Power Source
AC mains; Internal rechargeable lithium-ion battery

Mounting Type
Portable; VESA and pole-mount options

Accessories
Circuit, tubing, filters, external battery, carry bag

Noise Level
<35 dBA at 1 meter

Humidity Range
Compatible with external humidifier

Technology
Turbine-driven, adaptive servo ventilation

Surface Finish
Smooth, easy-to-clean

Automation Grade
Fully automatic (microprocessor controlled)

Air Flow Capacity
Up to 250 L/min

Material
High-quality medical-grade plastic and metal components

Type
Portable Invasive Ventilator

Power
90 W

Voltage
100-240V AC

Capacity
Can support adult and pediatric patients; tidal volume 50-2000 mL

Installation Type
Portable/Desktop

Usage
ICU, transport, home care

Function
Life-support ventilation for invasive and non-invasive applications

Battery Life
Up to 8 hours on internal battery

Patient Range
Neonates, Pediatric, Adult

Weight
Approx. 3.2 kg

Data Connectivity
USB, SD card, remote monitoring capability

Language Options
Multilingual user interface

Display
8.4 inch color LCD touchscreen

Event Log
Stores up to 365 days of event data

Dimensions
285 mm x 230 mm x 93 mm (W x D x H)

Alarm System
Comprehensive alarms for power, disconnection, high/low pressure, apnea, etc.

Oxygen Input
21-100% FiO2 adjustable

Environmental Conditions
Operates between 5C to 40C, 10-95% RH

Ventilation Modes
A/C, SIMV, CPAP, PSV, S/T, BiLevel

Resmed Astral 150 Invasive ventilator Trade Information

Minimum Order Quantity
1 Unit

Delivery Time
7 Days

About Resmed Astral 150 Invasive ventilator

The Astral 150 Adult and Pediatric Ventilator offer the same award-winning light-weight design as the Astral 100, but with added clinical benefits. While the Astral 100 uses a single-valve circuit system, the Astral 150 utilizes a double-circuit system to more accurately measure a patients exhaled breath in real time. For this particular BIPAP/CPAP accessory, Resmed also added integrated FiO2 monitoring for measuring the percentage of enriched oxygen the patient uses. Additionally, the manufacturers added two more preset programs, making four total preset programs for this particular model. The Astral 150 Adult and Pediatric Ventilators new manual breath and sigh features copy natural breathing patterns with larger than normal breath and an alarm that beeps to warn prior to the programmed interval sigh breath. These upgrades to the Astral 100, combined with the same best battery-to-weight ratio on the market and the standard Astral intelligent features, make the Astral 150 an even more comprehensive system for meeting a patients changing daily requirements.

Product Benefits:

Builds on the Astral 100 features with an even more versatile solution
A double-circuit system more accurately measures patient exhaled breath in real time
Manual breath and sigh features mimic natural breathing patterns
Monitor the percentage of enriched oxygen used
Configure up to four ventilation programs

Adaptive Ventilation for All Ages

The Astral 150 is engineered to deliver advanced life-support ventilation to neonates, pediatric, and adult patients. Whether in the ICU, during patient transport, or within the home, it ensures effective and safe respiratory assistance for a wide range of patient needs. The device's multiple ventilation modes and highly adjustable settings provide tailored therapy for diverse clinical scenarios.

Intuitive Operation and Monitoring

Featuring an 8.4-inch color LCD touchscreen, the Astral 150 offers a user-friendly, multilingual interface. Clinicians and caregivers can easily monitor real-time patient data, adjust settings, and access up to 365 days of event logs through USB or SD card connectivity. Its extensive alarm system enhances patient safety by providing immediate alerts for various conditions.

Portability and Robust Design

With a lightweight, compact form and up to 8 hours of internal battery life, the Astral 150 supports true portability. Its durable medical-grade construction, smooth finish, and compatibility with VESA and pole mounts allow easy deployment in multiple environments. This makes it ideal for mobility in hospital wards, ambulances, or home care.

FAQ's of Resmed Astral 150 Invasive ventilator:

Q: How long does the internal battery of the ResMed Astral 150 ventilator last during operation?

A: The Astral 150's internal lithium-ion battery can deliver ventilatory support for up to 8 hours per full charge, making it highly dependable for patient transport and situations where direct AC power may not be available.

Q: What ventilation modes are available on the Astral 150 and who can benefit from them?

A: The device offers A/C, SIMV, CPAP, PSV, S/T, and BiLevel modes, supporting a wide range of patient needs and conditions. These modes allow clinicians to tailor ventilation for neonates, children, or adults across home, ICU, or transport settings.

Q: When should the Astral 150 be utilized in a healthcare setting?

A: The Astral 150 is ideal when invasive or non-invasive ventilatory support is needed, particularly in intensive care units, during ambulance transport, or for home-based chronic respiratory care. It provides reliable support during patient transfer or temporary power outages due to its robust internal battery.

Q: Where can the ResMed Astral 150 be installed or used?

A: Thanks to its portable design, the Astral 150 can be used bedside in hospitals, on mobile transport mounts in ambulances, or as a desktop unit in home care. Its VESA and pole-mount compatibility makes it adaptable to a range of clinical and domestic environments.

Q: How is patient data stored and accessed on the Astral 150 ventilator?

A: The ventilator logs up to 365 days of event and ventilation data, easily retrievable through its USB and SD card connectivity. This enables clinicians to review historical data, monitor trends, and ensure quality patient care across all usage environments.

Q: What safety features are integrated into the Astral 150?

A: The device includes a comprehensive alarm system that monitors power status, disconnections, high or low pressure, apnea, and other critical events. This ensures prompt notification of potentially hazardous situations, supporting continuous patient safety.
